TES 1-2410V | TRACO POWER
DC/DC converter, 21.6-26.4 VDC, 1 W, 1 output, 3.3 VDC, 70 % efficiency, TES 1-2410V
Unit Price (€ / pc.)
10.0436 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
10.04 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0436 €
10 pcs.
9.0440 €
*incl. VAT plus shipping costs
**Subject to prior sale

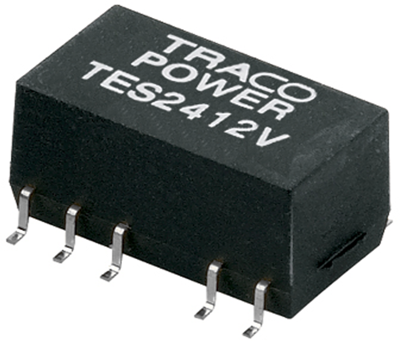

DC/DC converters, Traco TES 1-2410V
The TES-1V series are miniature, 1W DC/DC-converters with high isolation in a SMD package. With a new package design these converters are qualified for the higher temperatures requested by lead-free reflow solder processes. With the small footprint, these converters are the ideal solution for board level power distribution, mainly for applications in the industrial- and telecom field. For automated SMD production lines the devices can be supplied in standard tape and reel package.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 3.3 VDC | |
| Output current | 260 mA | |
| Design | SMD | |
| Width | 8 mm | |
| Input voltage AC | 21.6-26.4 VDC | |
| Height | 8 mm | |
| Isolation voltage | 3 kV | |
| Length | 16.3 mm | |
| Power | 1 W | |
| efficiency | 70 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
