TES 2-2411M | TRACO POWER
DC/DC converter, 21.6-26.4 VDC, 2 W, 1 output, 5 VDC, 66 % efficiency, TES 2-2411M
Unit Price (€ / pc.)
29.1193 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
29.12 € *
Price list
Quantity
Price per unit*
1 pcs.
29.1193 €
10 pcs.
26.2157 €
*incl. VAT plus shipping costs
**Subject to prior sale

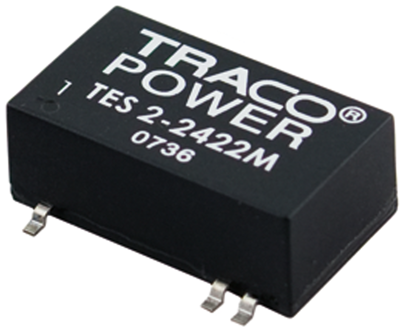

DC/DC converters, Traco TES 2-2411M
The TES 2M series is range of compact 2W DC/DC-converters providing a high I/O-isolation voltage of 4000 VAC. With a reinforced I/O-isolation system this product is an economical solution for many applications in instrumentation, industrial controls, medical equipment and everywhere where supplementary- or reinforced insulation is required. These converters are qualified for high solder temperature profiles in leadfree solder processes. For automated SMD production lines the devices can be supplied in tape & reel package. Full SMD-design with exclusive use of ceramic capacitors ensure a very high reliability and a long product lifetime.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 5 VDC | |
| Output current | 400 mA | |
| Design | SMD | |
| Width | 13.7 mm | |
| Input voltage AC | 21.6-26.4 VDC | |
| Height | 8.6 mm | |
| Isolation voltage | 4 kV | |
| Length | 23.8 mm | |
| Power | 2 W | |
| efficiency | 66 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
