TES 3-1212 | TRACO POWER
DC converter, 9-18 VDC, 3 W, 1 output, 12 VDC, 82 % efficiency, TES 3-1212
Unit Price (€ / pc.)
33.5580 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
33.56 € *
Price list
Quantity
Price per unit*
1 pcs.
33.5580 €
10 pcs.
30.2022 €
*incl. VAT plus shipping costs
**Subject to prior sale

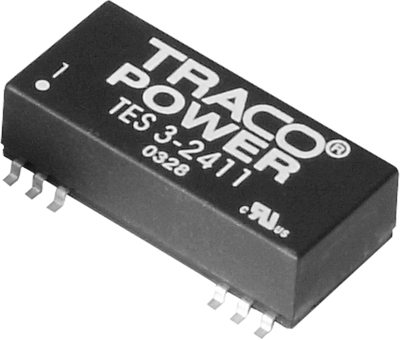

DC/DC converters, Traco TES 3-1212
The TES-3 series is a family of high performance 3W dc-dc converter modules featuring wide 2:1 input voltage ranges. The 15 models come in a low profile SMD package with dimensions of 32.3 x 14.8 x 10.2 mm. A high efficiency allows an operating temperature range of –40°C to +85°C at full load. This product is qualified for soldering in a high temperature lead-free reflow solder process. Typical applications for the converters are battery operated equipment, instrumentation, communication and industrial electronics, everywhere where an isolated, tightly regulated voltage is required.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 12 VDC | |
| Ausgangsstrom | 250 mA | |
| Bauform | SMD | |
| Breite | 14.8 mm | |
| Eingangsspannungsbereich | 9-18 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 32.2 mm | |
| Leistung | 3 W | |
| Wirkungsgrad | 82 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
