TES 3-4823 | TRACO POWER
DC converter, 36-75 VDC, 3 W, 2 outputs, ±15 VDC, 82 % efficiency, TES 3-4823
Unit Price (€ / pc.)
34.8313 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
34.83 € *
Price list
Quantity
Price per unit*
1 pcs.
34.8313 €
10 pcs.
31.3684 €
*incl. VAT plus shipping costs
**Subject to prior sale

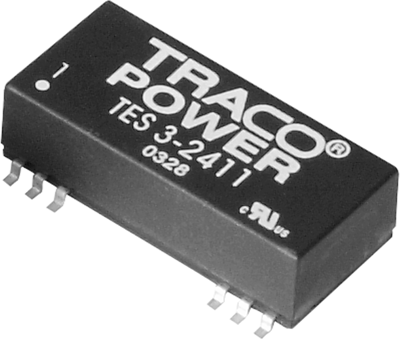

DC/DC converters, Traco TES 3-4823
The TES-3 series is a family of high performance 3W dc-dc converter modules featuring wide 2:1 input voltage ranges. The 15 models come in a low profile SMD package with dimensions of 32.3 x 14.8 x 10.2 mm. A high efficiency allows an operating temperature range of –40°C to +85°C at full load. This product is qualified for soldering in a high temperature lead-free reflow solder process. Typical applications for the converters are battery operated equipment, instrumentation, communication and industrial electronics, everywhere where an isolated, tightly regulated voltage is required.
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsstrom | 100 mA | |
| Ausgangsspannungsbereich | ±15 VDC | |
| Eingangsspannungsbereich | 36-75 VDC | |
| Leistung | 3 W | |
| Wirkungsgrad | 82 % | |
| Bauform | SMD | |
| Isolationsspannung | 1.5 kV | |
| Länge | 32.2 mm | |
| Breite | 14.8 mm | |
| Höhe | 10.2 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
