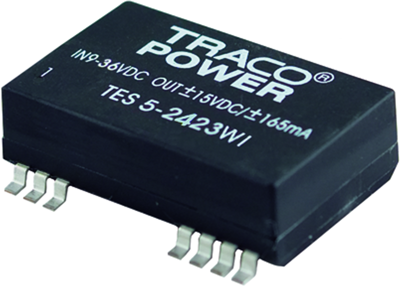

TES 5-2423WI | TRACO POWER
DC/DC converter, 9-36 VDC, 5 W, 2 outputs, ±15 VDC, 83 % efficiency, TES 5-2423WI
Unit Price (€ / pc.)
42.7091 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
42.71 € *
Price list
Quantity
Price per unit*
1 pcs.
42.7091 €
10 pcs.
38.4370 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC/DC converters, Traco TES 5-2423WI
The TES-5WI series is a family of high performance 5W dc/dc-converter modules in a low profile SMD package with compact dimensions. The 14 modules feature ultrawide 4:1 input ranges with tightly regulated output voltage. High efficiency allows an operating temperature range of –40 to +71°C at full load. Further features a e built-in EMI-filter to meet EN 55022 class A without external components and remote On/Off control. The products comply with IPC J-STD-020D and are qualified for high temperature lead-free reflow solder process
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±15 VDC | |
| Output current | 165 mA | |
| Design | SMD | |
| Width | 20.6 mm | |
| Input voltage AC | 9-36 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 33.4 mm | |
| Power | 5 W | |
| efficiency | 83 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
