THD 10-4813N | TRACO POWER

DC/DC converter, 36-75 VDC, 10 W, 1 output, 15 VDC, 88 % efficiency, THD 10-4813N

Order No.: 34C280
EAN: 4099891337780
MPN:
THD 10-4813N
Series: THD 10..N
TRACO POWER

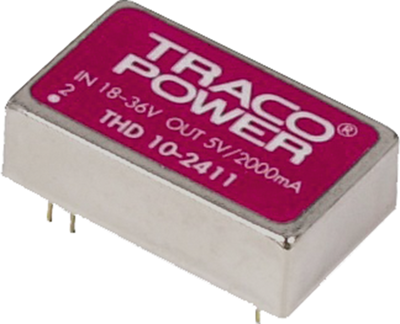

THD 10-4813N TRACO POWER DC/DC Converters Image 1
THD 10-4813N TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
27.0963 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
27.10 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0963 €
10 pcs.
24.3831 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC converters, type Traco THD 10..N.

10 W converter, integrated filter to EN 55022 class A and overload protection. No minimum burden required; Features: 2 : 1 extended-range input. Output voltage tolerance: ±2.0 %. Residual ripple: 100 mVpp. Operating temperatures: –40 to +85 °C. I/O test voltage: 1500 VDC. Insulation resistance: min. 1.0 Gohm. MTBF: 1.0 million h at +25 °C.

Input voltage range from 36 to 75 VDC.

Technical attributes (type, number of outputs, output voltage, output current, efficiency): THD 10-4813N, 1 x OUT, 15 VDC, 666 mA, 88 %

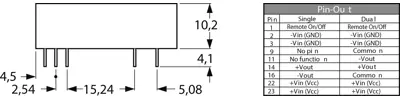

Technical specifications
Number of outputs 1
Output voltage DC 15 VDC
Output current 666 mA
Design DIP24
Width 20.3 mm
Input voltage AC 36-75 VDC
Height 10.2 mm
Isolation voltage 1.5 kV
Length 31.8 mm
Power 10 W
efficiency 88 %
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
