THD 12-4821WI | TRACO POWER
DC/DC converter, 18-75 VDC, 12 W, 2 outputs, ±5 VDC, 82 % efficiency, THD 12-4821WI
Unit Price (€ / pc.)
46.2315 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
46.23 € *
Price list
Quantity
Price per unit*
1 pcs.
46.2315 €
10 pcs.
41.6143 €
*incl. VAT plus shipping costs
**Subject to prior sale

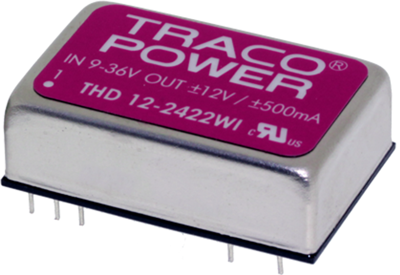

DC/DC converters, Traco THD 12-4821WI
The THD-12WI series is a range of high performance, isolated 12W dc/dc converter modules featuring ultra wide 4:1 input voltage ranges in a DIP-24 package with industry-standard footprint. Overload and overvoltage protection as well as remote On/Off are included as standard. Built-in filters for both input and output minimizes the need of external filtering. Full SMD-design with exclusive use of ceramic capacitors guarantees a high reliability and long product lifetime. Typical applications for these converters are industrial electronics, instrumentation, data communication systems and battery operated equipment with limited space available on the PCB
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±5 VDC | |
| Output current | 1.2 A | |
| Design | DIP24 | |
| Width | 20.3 mm | |
| Input voltage AC | 18-75 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 31.8 mm | |
| Power | 12 W | |
| efficiency | 82 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
