THD 15-4811WIN | TRACO POWER
DC converter, 18-75 VDC, 15 W, 1 output, 5.1 VDC, 89 % efficiency, THD 15-4811WIN
Unit Price (€ / pc.)
57.1200 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
57.12 € *
Price list
Quantity
Price per unit*
1 pcs.
57.1200 €
10 pcs.
51.4080 €
*incl. VAT plus shipping costs
**Subject to prior sale

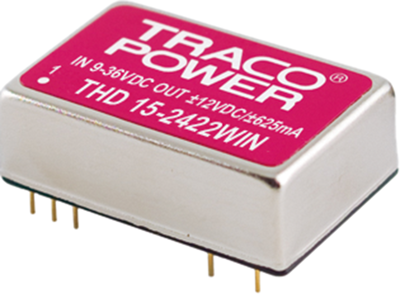

DC converters, type Traco THD 15WIN.
15 W converter in DIL-24 package with 4 : 1 extended-range inputs. High performance density. Features: input filter to EN 55022 (class A), shielded metal package with insulated base plate, industrial standard pinning, no burden required. Input voltage fluctuation: 0.2/0.5 % (single/dual modules). Load fluctuation at single/dual outputs: 0.5 %/1.0 %. Residual ripple: 60 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VDC. MTBF: min. 410000 h/+25 °C.
Input voltage range from 18 to 75 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): THD 15-4811WIN, 1 x OUT, 5.1 VDC, 3000 mA, 89 %

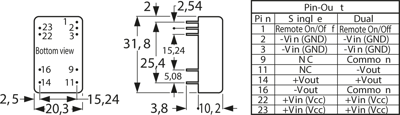

Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5,1 VDC | |
| Ausgangsstrom | 3 A | |
| Bauform | DIP24 | |
| Breite | 20.3 mm | |
| Eingangsspannungsbereich | 18-75 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 31.8 mm | |
| Leistung | 15 W | |
| Wirkungsgrad | 89 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
