THI 2-0522M | TRACO POWER
DC/DC converter, 4.5-5.5 VDC, 2 W, 2 outputs, ±12 VDC, 72 % efficiency, THI 2-0522M
Unit Price (€ / pc.)
26.6441 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
26.64 € *
Price list
Quantity
Price per unit*
1 pcs.
26.6441 €
10 pcs.
23.9785 €
*incl. VAT plus shipping costs
**Subject to prior sale

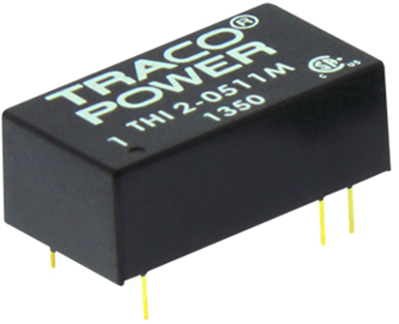

DC/DC converters, Traco THI 2-0522M
The THI 2M series is a new range of ultra-compact 2W DC/DC-converters providing a high I/O-isolation voltage of 3000 VAC. With a reinforced I/O-isolation system this product is an economical solution for many applications in instrumentation, industrial controls, medical equipment and everywhere where supplementary- or reinforced insulation is required to meet requested safety standards. Full SMD-design with exclusive use of ceramic capacitors ensure a very high reliability and a long product lifetime.
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±12 VDC | |
| Output current | 83 mA | |
| Design | DIP16 | |
| Width | 13.7 mm | |
| Input voltage AC | 4.5-5.5 VDC | |
| Height | 8.6 mm | |
| Isolation voltage | 3 kV | |
| Length | 23.8 mm | |
| Power | 2 W | |
| efficiency | 72 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
