THI 2-1222M | TRACO POWER
DC converter, 10.8-13.2 VDC, 2 W, 2 outputs, ±12 VDC, 74 % efficiency, THI 2-1222M
Unit Price (€ / pc.)
27.1796 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
27.18 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1796 €
10 pcs.
24.4545 €
*incl. VAT plus shipping costs
**Subject to prior sale

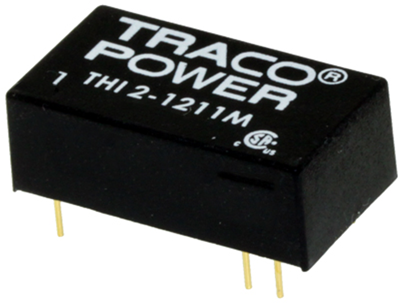

DC/DC converters, Traco THI 2-1222M
The THI 2M series is a new range of ultra-compact 2W DC/DC-converters providing a high I/O-isolation voltage of 3000 VAC. With a reinforced I/O-isolation system this product is an economical solution for many applications in instrumentation, industrial controls, medical equipment and everywhere where supplementary- or reinforced insulation is required to meet requested safety standards. Full SMD-design with exclusive use of ceramic capacitors ensure a very high reliability and a long product lifetime.
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsstrom | 83 mA | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Eingangsspannungsbereich | 10,8-13,2 VDC | |
| Leistung | 2 W | |
| Wirkungsgrad | 74 % | |
| Bauform | DIP16 | |
| Isolationsspannung | 3 kV | |
| Länge | 23.8 mm | |
| Breite | 13.7 mm | |
| Höhe | 8.6 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
