THL 10-2413 | TRACO POWER
DC/DC converter, 18-36 VDC, 10 W, 1 output, 15 VDC, 89 % efficiency, THL 10-2413
Unit Price (€ / pc.)
32.6179 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
32.62 € *
Price list
Quantity
Price per unit*
1 pcs.
32.6179 €
10 pcs.
29.3454 €
*incl. VAT plus shipping costs
**Subject to prior sale

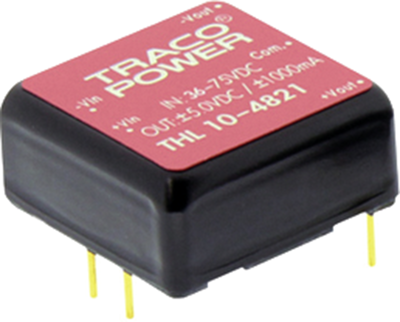

DC converters, type Traco THL 10.
10 W converter, shielded metal housing, insulated base plate, integrated filter to EN 55022 class A; Features: 2 : 1 extended-range input. Output voltage tolerance: ±2.0 %. Residual ripple: 80 mVpp (3.3 and 5.0 V), 100 mVpp (5.1, 12, 15 V). Operating temperatures: –40 to +80 °C. I/O test voltage: 1500 VDC. Insulation resistance: min. 1.0 Gohm.
Input voltage range from 18 to 36 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): THL 10-2413, 1 x OUT, 15 VDC, 670 mA, 89 %
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 15 VDC | |
| Output current | 670 mA | |

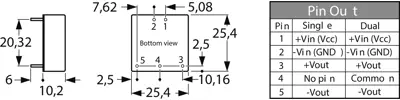

| Design | DIP5 | |
| Width | 25.4 mm | |
| Input voltage AC | 18-36 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 25.4 mm | |
| Power | 10 W | |
| efficiency | 89 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
