THL 10-4810 | TRACO POWER
DC/DC converter, 36-75 VDC, 10 W, 1 output, 3.3 VDC, 83 % efficiency, THL 10-4810
Unit Price (€ / pc.)
39.2819 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
39.28 € *
Price list
Quantity
Price per unit*
1 pcs.
39.2819 €
10 pcs.
35.3430 €
*incl. VAT plus shipping costs
**Subject to prior sale

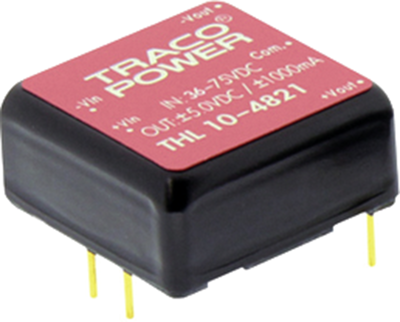

DC converters, type Traco THL 10.
10 W converter, shielded metal housing, insulated base plate, integrated filter to EN 55022 class A; Features: 2 : 1 extended-range input. Output voltage tolerance: ±2.0 %. Residual ripple: 80 mVpp (3.3 and 5.0 V), 100 mVpp (5.1, 12, 15 V). Operating temperatures: –40 to +80 °C. I/O test voltage: 1500 VDC. Insulation resistance: min. 1.0 Gohm.
Input voltage range from 36 to 75 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): THL 10-4810, 1 x OUT, 3.3 V, 2500 mA, 83 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 3,3 VDC | |
| Ausgangsstrom | 2.5 A | |

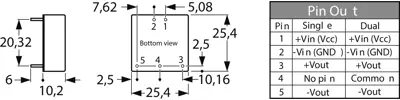

| Bauform | DIP5 | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 36-75 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 25.4 mm | |
| Leistung | 10 W | |
| Wirkungsgrad | 83 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
