THL 3-4821WI | TRACO POWER
DC/DC converter, 18-75 VDC, 3 W, 2 outputs, ±5 VDC, 77 % efficiency, THL 3-4821WI
Unit Price (€ / pc.)
21.7413 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
21.74 € *
Price list
Quantity
Price per unit*
1 pcs.
21.7413 €
10 pcs.
19.5636 €
*incl. VAT plus shipping costs
**Subject to prior sale

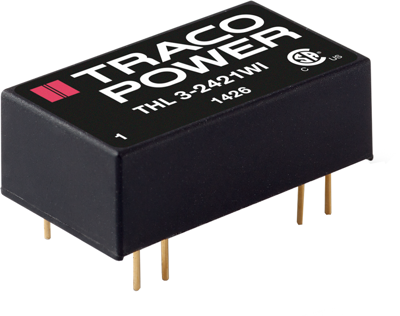

DC/DC converters, Traco THL 3-4821WI
The THL 3WI series is a family of compact 3 W dc/dc-converters with 4:1 input voltage ranges in DIP-package. The internal filter which meets EN55022 Class A without external components makes the converter easy to design in. They come with remote On/Off and short circuit protection. THL 3WI converter is an excellent solution for data- and telecom applications and for instrumentation and Industrial electronics.
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±5 VDC | |
| Ausgangsstrom | 300 mA | |
| Bauform | DIP16 | |
| Breite | 13.7 mm | |
| Eingangsspannungsbereich | 18-75 VDC | |
| Höhe | 8 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 23.8 mm | |
| Leistung | 3 W | |
| Wirkungsgrad | 77 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
