THM 60-2413WI | TRACO POWER

60 Watt DC/DC converter, medical, 4:1 input, 5000VAC I/O-isolation (2xMOPP), encaps. 2.3" x 1.45"

Order No.: 35C1366
EAN: 7613441066356
MPN:
THM 60-2413WI
Series: THM 60WI
TRACO POWER
THM 60-2413WI TRACO POWER DC/DC Converters

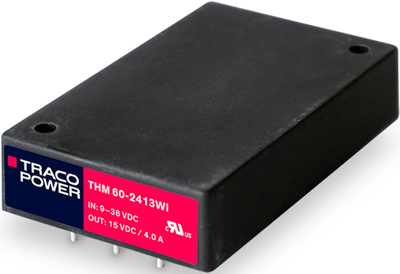

Image may differ
Unit Price (€ / pc.)
154.6405 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
154.64 € *
Price list
Quantity
Price per unit*
1 pcs.
154.6405 €
5 pcs.
139.1824 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC/DC Converter, THM 60-2413WI, TRACO POWER

The THM 60WI is a range of medical 60 Watt DC/DC converter in a compact 2.3” x 1.45” plastic package and with wide 4:1 input voltage range. It provides a reinforced isolation system (5000 VAC) and a very low leakage current of less than 4.5 μA. With a high efficiency of up to 92% and highest-grade components This converter can reliably operate in an ambient temperature range of -40°C up to +75°C with derating. For more demanding applications regarding temperature, Traco also offers a special heatsink which will greatly increase the thermal capabilities for natural convection conditions. The units are approved according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP as well as IEC/EN/UL 62368-1 and comes along with an ISO 14971 risk management file. Design and production conform to the quality management system ISO 13485. The THM 60WI constitutes a reliable solution not only for medical equipment but also for demanding ranges of application such as control & measurement and transportation.

Technical specifications
Number of outputs 1
Output voltage DC 15 VDC
Output current 4000 mA
Design 1/4 Brick
Width 36.8 mm
Input voltage AC 9-36 VDC
Height 12.7 mm
Isolation voltage 5 kV
Length 57.9 mm
Power 60 W
efficiency 90 %
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
