THN 15-1215 | TRACO POWER

DC converter, 9-18 VDC, 15 W, 1 output, 24 VDC, 90 % efficiency, THN 15-1215

Order No.: 32C2143
EAN: 4099891313630
MPN:
THN 15-1215
Series: THN 15
THN 15-1215 TRACO POWER DC/DC Converters

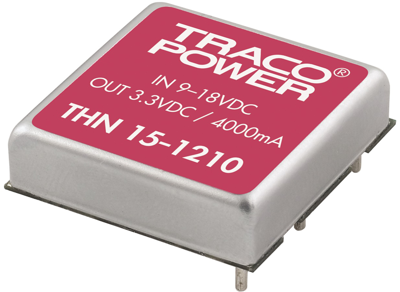

Image may differ
Unit Price (€ / pc.)
42.1141 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
42.11 € *
Price list
Quantity
Price per unit*
1 pcs.
42.1141 €
10 pcs.
37.9134 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC/DC converters, Traco THN 15-1215

The THN-15 series is the latest generation of high performance dc-dc converter modules setting new standards concerning power density. This product with 15W comes in a encapsulated, shielded metal package with dimensions of only 1.0”x1.0”x 0.4” and occupies 50%(!) less board space. All models have wide 2:1 input voltage range and precisely regulated, isolated output voltages. Advanced circuit design provides high efficiency up to 88% which allows a operating temperature range of –40°C to +85°C (with derating) Further features include remote On/Off and trimmable output. Typical applications for these converters are mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on PCB is critical.

Technical specifications
Anzahl der Ausgänge 1
Ausgangsspannungsbereich 24 VDC
Ausgangsstrom 625 mA
Bauform DIP6
Breite 25.4 mm
Eingangsspannungsbereich 9-18 VDC
Höhe 9.9 mm
Isolationsspannung 1.6 kV
Länge 25.4 mm
Leistung 15 W
Wirkungsgrad 90 %
Logistics
Ursprungsland TW
Zolltarifnummer 85044095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
