THN 15-2412 | TRACO POWER

DC converter, 18-36 VDC, 15.6 W, 1 output, 12 VDC, 87 % efficiency, THN 15-2412

Order No.: 25K2714
MPN:
THN 15-2412
Series: THN 15
THN 15-2412 TRACO POWER DC/DC Converters Image 1
THN 15-2412 TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
43.1732 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
431.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
43.1732 €

DC/DC Converter, THN 15-2412, TRACO POWER

The THN 15-2412 is the latest generation of high performance DC/DC converter modules setting new standards concerning power density. This product with 15 W comes in an encapsulated, shielded metal package. It has a 2:1 input voltage and precisely regulated, isolated output voltage. Advanced circuit design provides high efficiency which allows an operating temperature range of -40°C to +85°C.

Features

  • Output voltage Trim
  • Remote On/Off control
  • Smallest encapsulated 15 W Converter

Applications

  • Mobile equipment
  • Instrumentation
  • Distributed power architectures in communication and industrial electronics
Technical specifications
Number of outputs 1
Output current 1.3 A
Output voltage DC 12 VDC
Input voltage AC 18-36 VDC
Power 15.6 W
efficiency 87 %

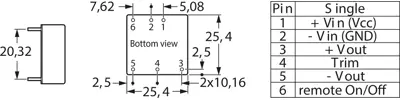

Design DIP6
Isolation voltage 1.6 kV
Length 25.4 mm
Width 25.4 mm
Height 9.9 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
