THN 15-3613UIR | TRACO POWER
DC/DC converter, 9-75 VDC, 15 W, 1 output, 15 VDC, 88 % efficiency, THN 15-3613UIR
Unit Price (€ / pc.)
67.7110 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
67.71 € *
Price list
Quantity
Price per unit*
1 pcs.
67.7110 €
10 pcs.
60.9399 €
*incl. VAT plus shipping costs
**Subject to prior sale

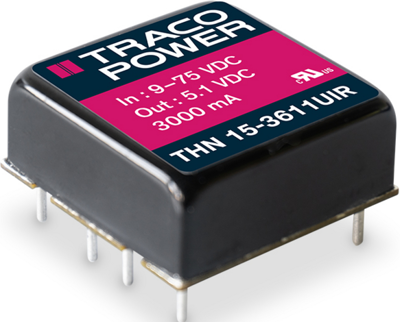

DC/DC Converter, THN 15-3613UIR, TRACO POWER
The THN 15UIR is a high-performance DC/DC converter with an ultra-wide 12:1 input voltage range and a power output of 15 watt. The THN 15UIR comes in a compact, fully encapsulated 1”x1” housing for highest reliability and effective cooling. Thanks to its dedicated holdup capacitor connection, the THN 15UIR meets extended holdup-time requirements without the need for bulky input capacitors. The THN 15UIR is EN 50155 certified for rolling stock applications, EN 61373 certified for resistance against mechanical shock and vibration and EN 45545-2 certified for fire behavior. The THN 15UIR also comes with IEC/EN/UL 62368-1 safety approvals for use in a wide range of demanding industrial applications.
Features
- Dedicated holdup capacitor connection
- Fully encapsulated
- Remote on/off and trim function
- Protection against short-circuit (SCP)
- Overvoltage (OVP)
- Overtemperature (OTP)
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 15 VDC | |
| Output current | 1000 mA | |
| Width | 25.4 mm | |
| Input voltage AC | 9-75 VDC | |
| Height | 9.9 mm | |
| Isolation voltage | 3 kV | |
| Length | 25.4 mm | |
| Power | 15 W | |
| efficiency | 88 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
