THN 15-4822 | TRACO POWER
DC converter, 36-75 VDC, 15 W, 2 outputs, ±12 VDC, 89 % efficiency, THN 15-4822
Unit Price (€ / pc.)
46.3148 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
46.31 € *
Price list
Quantity
Price per unit*
1 pcs.
46.3148 €
10 pcs.
41.6976 €
*incl. VAT plus shipping costs
**Subject to prior sale

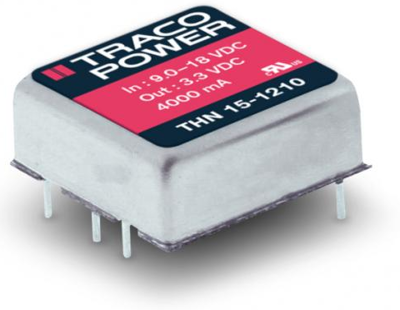

DC converters, type Traco THN 15.
15 W converter; 2 : 1 extended-range inputs, metal housing with insulated base plate, short-circuit protection, low-voltage/overvoltage shutdown. Variable output voltage: ±10 %. Control error: ±0.2 %. Residual ripple: 100 mVpp (75 mVpp at 3.3 and 5.0 V). Operating temperatures: –40 to +85 °C. Insulation voltage:: 1500 VDC. MTBF: 1.6 million h at +25 °C.
Input voltage range from 36 to 75 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): THN 15-4822, 2 x OUT, ±12 VDC, ±625 mA, 89 %
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 625 mA | |
| Bauform | DIP6 | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 36-75 VDC | |
| Höhe | 9.9 mm | |
| Isolationsspannung | 1.6 kV | |
| Länge | 25.4 mm | |
| Leistung | 15 W | |
| Wirkungsgrad | 89 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
