THN 15-4823WIR | TRACO POWER
DC/DC converter, 18-75 VDC, 15 W, 2 outputs, ±15 VDC, 89 % efficiency, THN 15-4823WIR
Order No.: 32C3416
EAN: 4099891322670
MPN:
THN 15-4823WIR
Unit Price (€ / pc.)
60.7019 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
60.70 € *
Price list
Quantity
Price per unit*
1 pcs.
60.7019 €
10 pcs.
54.6329 €
*incl. VAT plus shipping costs
**Subject to prior sale

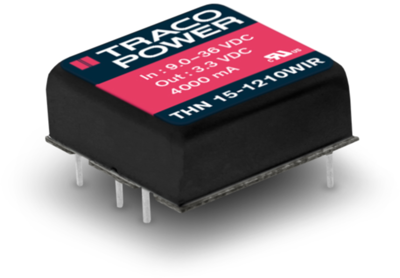

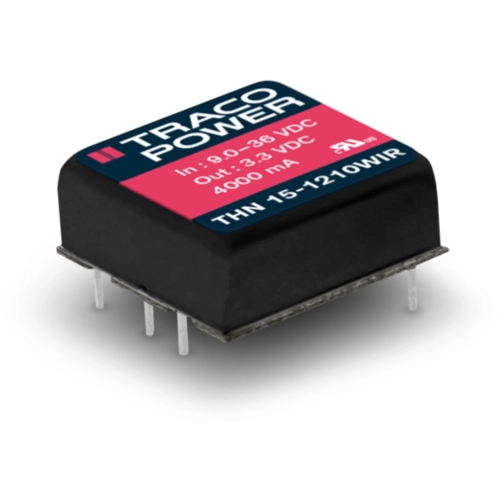

DC/DC converters, Traco THN 15-4823WIR
The THN 15WIR series is a family of ruggedized 15 Watt DC/DC converters for highest reliability in harsh environments. The converters have an increased resistance against electromagnetic interference, shock/vibration and thermal shock. The approvals according to standards EN 50155 and EN 61373 qualify them for railway and transportation systems. The qualification for the fire behaviour of components according to EN 45545-2 and the safety approval according IEC/EN 60950-1, UL60950-1 support a potential compliance test of the application. Built-in EMI 55022 class A filter, input under-voltage-lockout, short circuit protection, remote On/Off and output voltage trim are further features which facilitate the design in.
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±15 VDC | |
| Ausgangsstrom | 500 mA | |
| Bauform | DIP6 | |
| Breite | 25 mm | |
| Eingangsspannungsbereich | 18-75 VDC | |
| Höhe | 15 mm | |
| Isolationsspannung | 3 kV | |
| Länge | 25 mm | |
| Leistung | 15 W | |
| Wirkungsgrad | 89 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
