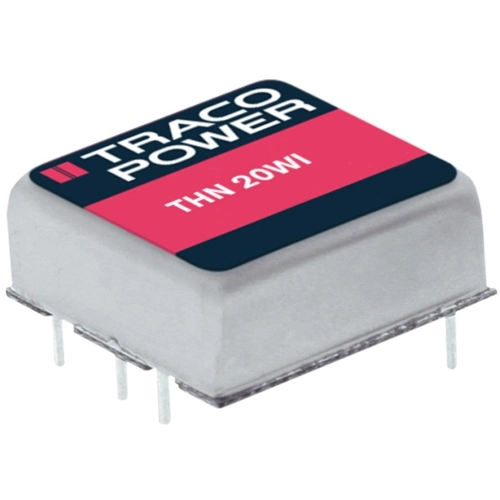

THN 20-2422WI | TRACO POWER
DC converter, 9-36 VDC, 20 W, 2 outputs, ±12 VDC, 89 % efficiency, THN 20-2422WI
Unit Price (€ / pc.)
59.5833 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
59.58 € *
Price list
Quantity
Price per unit*
1 pcs.
59.5833 €
10 pcs.
53.6214 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco THN 20-..WI.
20 W converter with 4 : 1 extended-range inputs, sustained short-circuit resistant, shielded metal package with insulated base plate, external ON/OFF, input filter to EN 55022 class A. Input voltage fluctuation on single/dual models: ±0.2/0.5 %. Load fluctuation on single/dual output: ±0.2/±1.0 %. Residual ripple: 5.0 V/other models: 75/100 mVpp. Operating temperatures: –40 to +75 °C (85 °C with heatsink. Insulation voltage I/O: 1500 VDC. MTBF: 550000 h at +25 °C.
Input voltage 9.0 to 36 VDC.
Technical attributes (type, output voltage/output current, efficiency): THN 20-2422WI, 2 x OUT, ±12 VDC/0.833 A, 89 %
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 833 mA | |
| Bauform | DIP6 | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 9-36 VDC | |
| Höhe | 9.9 mm | |
| Isolationsspannung | 1.6 kV | |
| Länge | 25.4 mm | |
| Leistung | 20 W | |
| Wirkungsgrad | 89 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
