THN 30-1223 | TRACO POWER
DC/DC converter, 9-18 VDC, 30 W, 2 outputs, ±15 VDC, 90 % efficiency, THN 30-1223
Unit Price (€ / pc.)
81.1461 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
81.15 € *
Price list
Quantity
Price per unit*
1 pcs.
81.1461 €
10 pcs.
73.0303 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco THN 30.
30 W converter, shielded metal housing, insulated base plate; Features: 2 : 1 extended-range input, variable output voltage, thermal overload protection. Output voltage tolerance: 1.0 %. Residual ripple: 75 mVpp ( 2 x OUT 60 mVpp). Operating temperatures without/with heatsink: –40 to +80/–40 to +85 °C (suitable heatsink: THN-HS1). I/O insulation voltage: 1500 VDC. Insulation resistance: min. 1.0 Gohm. MTBF: 1.3 million h at +25 °C.
Input voltage range from 9.0 to 18 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): THN 30-1223, 2 x OUT, ±15 VDC, ±1000 mA, 90 %
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±15 VDC | |
| Output current | 1 A | |

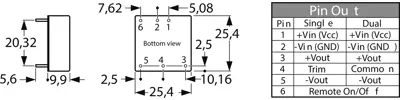

| Design | DIP6 | |
| Width | 25.4 mm | |
| Input voltage AC | 9-18 VDC | |
| Height | 9.9 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 25.4 mm | |
| Power | 30 W | |
| efficiency | 90 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
