THN 30-2415 | TRACO POWER
DC/DC converter, 18-36 VDC, 30 W, 1 output, 24 VDC, 91 % efficiency, THN 30-2415
Unit Price (€ / pc.)
75.2080 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
75.21 € *
Price list
Quantity
Price per unit*
1 pcs.
75.2080 €
10 pcs.
67.6872 €
*incl. VAT plus shipping costs
**Subject to prior sale

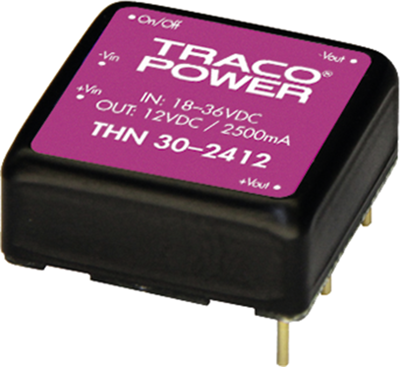

DC converters, type Traco THN 30.
30 W converter, shielded metal housing, insulated base plate; Features: 2 : 1 extended-range input, variable output voltage, thermal overload protection. Output voltage tolerance: 1.0 %. Residual ripple: 75 mVpp ( 2 x OUT 60 mVpp). Operating temperatures without/with heatsink: –40 to +80/–40 to +85 °C (suitable heatsink: THN-HS1). I/O insulation voltage: 1500 VDC. Insulation resistance: min. 1.0 Gohm. MTBF: 1.3 million h at +25 °C.
Input voltage range from 18 to 36 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): THN 30-2415, 1 x OUT, 24 VDC, 1250 mA, 91 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 1.25 A | |

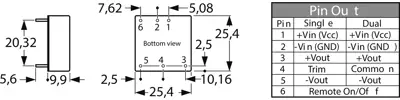

| Bauform | DIP6 | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 18-36 VDC | |
| Höhe | 9.9 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 25.4 mm | |
| Leistung | 30 W | |
| Wirkungsgrad | 91 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
