THR 20-7222WI | TRACO POWER
DC converter, 40-160 VDC, 20 W, 2 outputs, ±12 VDC, 86 % efficiency, THR 20-7222WI
Unit Price (€ / pc.)
62.6178 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
62.62 € *
Price list
Quantity
Price per unit*
1 pcs.
62.6178 €
10 pcs.
56.3584 €
*incl. VAT plus shipping costs
**Subject to prior sale

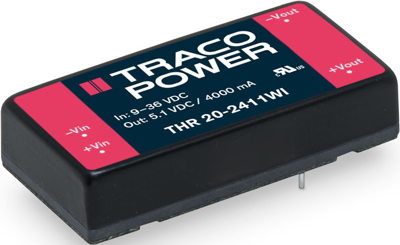

DC/DC Converter, THR 20-7222WI, TRACO POWER
The THR 20WI is 20 Watt DC/DC converter with reinforced isolation (3000 VAC). This regulated DC/DC converter comes in either a 2"x1" package and also features increased resistance against shock and vibration according to EN 61373. The THR 20WI offers an internal input filter to comply with EN 55032 class A. High efficiencies up to 88% allow safe operation from -40°C to +80°C (with derating). All models have a wide 4:1 input voltage range and precisely regulated, isolated output voltages. With the latest IT safety certifications (IEC/EN/UL 62368-1) the THR 20WI is the perfect choice for many demanding applications in the industrial, transportation and instrumentation sectors.
Features
- High efficiency up to 88%
- Protection against overload,
- Overvoltage and short circuit
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 833 mA | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 40-160 VDC | |
| Höhe | 11 mm | |
| Isolationsspannung | 3 kV | |
| Länge | 50.8 mm | |
| Leistung | 20 W | |
| Wirkungsgrad | 86 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
