THR 3-7213WI | TRACO POWER
DC/DC converter, 40-160 VDC, 3 W, 1 output, 15 VDC, 84 % efficiency, THR 3-7213WI
Unit Price (€ / pc.)
28.3339 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
28.33 € *
Price list
Quantity
Price per unit*
1 pcs.
28.3339 €
10 pcs.
25.5017 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC/DC Converter, THR 3-7213WI, TRACO POWER

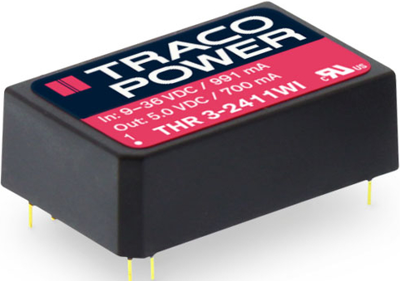

The THR 3WI is 3 Watt DC/DC converter with reinforced isolation (3000 VAC). This regulated DC/DC converter comes in either a DIP-24 package and also features increased resistance against shock and vibration according to EN 61373. The THR 3WI offers an internal input filter to comply with EN 55032 class A. High efficiencies up to 85% allow safe operation from -40°C to +92°C (with derating). All models have a wide 4:1 input voltage range and precisely regulated, isolated output voltages. With the latest IT safety certifications (IEC/EN/UL 62368-1) the THR 3WI is the perfect choice for many demanding applications in the industrial, transportation and instrumentation sectors.
Features
- High efficiency up to 85%
- Protection against overload,
- Overvoltage and short circuit
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 15 VDC | |
| Output current | 200 mA | |
| Design | DIP24 | |
| Width | 20.3 mm | |
| Input voltage AC | 40-160 VDC | |
| Height | 12 mm | |
| Isolation voltage | 3 kV | |
| Length | 31.8 mm | |
| Power | 3 W | |
| efficiency | 84 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
