TMA 1205D | TRACO POWER
DC converter, 10.8-13.2 VDC, 1 W, 2 outputs, ±5 VDC, 74 % efficiency, TMA 1205D
Unit Price (€ / pc.)
5.4383 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
5.44 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4383 €
10 pcs.
4.9028 €
*incl. VAT plus shipping costs
**Subject to prior sale

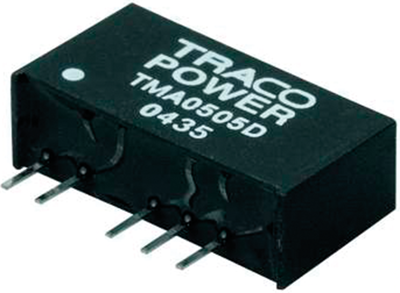

DC converters, type Traco TMA.
Miniature 1.0 W converter in SiL package, high efficiency and 100 % burn-in (8.0 h). Pin-compatible with other brands; Open-circuit input current: 30 mA at 5.0 VDC, 12 mA at 12 VDC, 7.0 mA at 24 VDC. Adjustment tolerance: ±3.0 %. Control error on input/load fluctuation: ±1.2/10 %. Residual ripple: 75 mVpp. Temperature coefficient: ±0.02 %/°C. Operating temperatures: –40 to +85 °C. I/O test voltage: 1000 VDC. Insulation resistance: 1000 Mohm. Switching frequency: 100 kHz.
Technical attributes (type, input voltage range (±10 %), output voltage/current, typical efficiency): TMA 1205D, 12 VDC, 2 x OUT, ±5.0 VDC/±100 mA, 74 %
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±5 VDC | |
| Output current | 100 mA | |

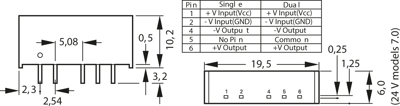

| Design | SIP6 | |
| Width | 6.1 mm | |
| Input voltage AC | 10,8-13,2 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1 kV | |
| Length | 19.5 mm | |
| Power | 1 W | |
| efficiency | 74 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
| Original Packaging | Stange mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
