TMA 1205S | TRACO POWER
DC/DC converter, 10.8-13.2 VDC, 1 W, 1 output, 5 VDC, 73 % efficiency, TMA 1205S
Unit Price (€ / pc.)
4.9385 € *
Available: 8 pcs.
Leadtime: 14 Weeks **
Total Price:
4.94 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9385 €
10 pcs.
4.4506 €
*incl. VAT plus shipping costs
**Subject to prior sale

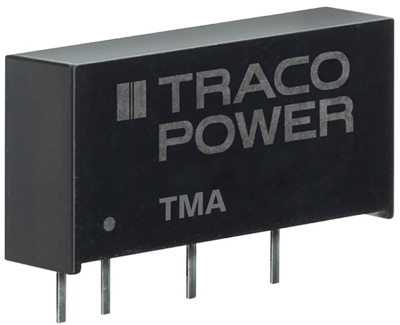

DC converters, type Traco TMA.
Miniature 1.0 W converter in SiL package, high efficiency and 100 % burn-in (8.0 h). Pin-compatible with other brands; Open-circuit input current: 30 mA at 5.0 VDC, 12 mA at 12 VDC, 7.0 mA at 24 VDC. Adjustment tolerance: ±3.0 %. Control error on input/load fluctuation: ±1.2/10 %. Residual ripple: 75 mVpp. Temperature coefficient: ±0.02 %/°C. Operating temperatures: –40 to +85 °C. I/O test voltage: 1000 VDC. Insulation resistance: 1000 Mohm. Switching frequency: 100 kHz.
Technical attributes (type, input voltage range (±10 %), output voltage/current, typical efficiency): TMA 1205S, 12 VDC, 1 x OUT, 5.0 VDC/200 mA, 73 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 200 mA | |
| Bauform | SIP7 | |
| Breite | 6.1 mm | |
| Eingangsspannungsbereich | 10,8-13,2 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1 kV | |
| Länge | 19.5 mm | |
| Leistung | 1 W | |
| Wirkungsgrad | 73 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| Originalverpackung | Stange mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
