TMA 1505S | TRACO POWER
DC/DC converter, 13.5-16.5 VDC, 1 W, 1 output, 5 VDC, 72 % efficiency, TMA 1505S
Unit Price (€ / pc.)
4.9385 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
4.94 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9385 €
10 pcs.
4.4506 €
*incl. VAT plus shipping costs
**Subject to prior sale

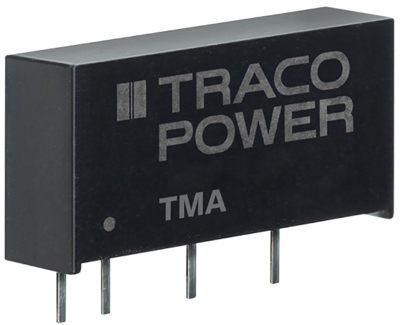

DC/DC converters, Traco TMA 1505S
The TMA series are miniature, isolated 1 W DC/DC-converters in a Single-in-Line package (SIP). Requiring only 1.2 cm² board space they offer the ideal solution in many space critical applications for board level power distribution. The use of SMD technology makes it possible to offer a product with high performance at low cost.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 200 mA | |
| Bauform | SIP7 | |
| Breite | 7.1 mm | |
| Eingangsspannungsbereich | 13,5-16,5 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1 kV | |
| Länge | 19.5 mm | |
| Leistung | 1 W | |
| Wirkungsgrad | 72 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
