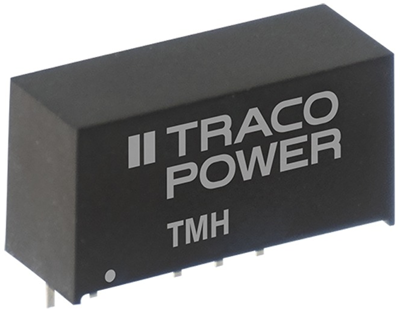

TMH 1212S | TRACO POWER
DC/DC converter, 10.8-13.2 VDC, 2 W, 1 output, 12 VDC, 82 % efficiency, TMH 1212S
Unit Price (€ / pc.)
6.8782 € *
Available: 21 pcs.
Leadtime: 14 Weeks **
Total Price:
6.88 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8782 €
10 pcs.
6.1761 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TMH.
2.0 W version in SiL package, pin-compatible with other brands, high efficiency and 100 % burn-in (8.0 h); Input current no-load/full load: 50 mA/510 mA at 5.0 VDC, 20 mA/200 mA at 12 VDC, 10 mA/100 mA at 24 VDC. Adjustment tolerance: ±3.0 %. Control error on input/load fluctuation: ±1.2 %/±10 %. Residual ripple: 75 mVpp, as of 12 V 150 mVpp. Temperature coefficient: ±0.02 %/°C. Operating temperatures: –40 to +85 °C. I/O test voltage: 1000 VDC. Insulation resistance: 1000 Mohm. Switching frequency: 80 kHz.
Technical attributes (type, input voltage range, output voltage/current, typical efficiency): TMH 1212S, 12 VDC, 1 x OUT, 12 VDC/0.165 A, 82 %
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Output current | 165 mA | |
| Design | SIP7 | |
| Width | 7.6 mm | |
| Input voltage AC | 10.8-13.2 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1 kV | |
| Length | 19.5 mm | |
| Power | 2 W | |
| efficiency | 82 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
| Original Packaging | Bar with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
