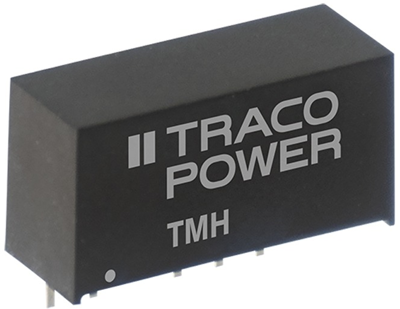

TMH 2405S | TRACO POWER
DC converter, 21.6-26.4 VDC, 2 W, 1 output, 5 VDC, 77 % efficiency, TMH 2405S
Unit Price (€ / pc.)
7.0210 € *
Available: 21 pcs.
Next delivery: 30 pcs. on 2025-05-12
Leadtime: 14 Weeks **
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0210 €
10 pcs.
6.2951 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TMH.
2.0 W version in SiL package, pin-compatible with other brands, high efficiency and 100 % burn-in (8.0 h); Input current no-load/full load: 50 mA/510 mA at 5.0 VDC, 20 mA/200 mA at 12 VDC, 10 mA/100 mA at 24 VDC. Adjustment tolerance: ±3.0 %. Control error on input/load fluctuation: ±1.2 %/±10 %. Residual ripple: 75 mVpp, as of 12 V 150 mVpp. Temperature coefficient: ±0.02 %/°C. Operating temperatures: –40 to +85 °C. I/O test voltage: 1000 VDC. Insulation resistance: 1000 Mohm. Switching frequency: 80 kHz.
Technical attributes (type, input voltage range, output voltage/current, typical efficiency): TMH 2405S, 24 VDC, 1 x OUT, 5.0 VDC/0.4 A, 77 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 400 mA | |
| Bauform | SIP7 | |
| Breite | 7.6 mm | |
| Eingangsspannungsbereich | 21,6-26,4 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1 kV | |
| Länge | 19.5 mm | |
| Leistung | 2 W | |
| Wirkungsgrad | 77 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| Originalverpackung | Stange mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
