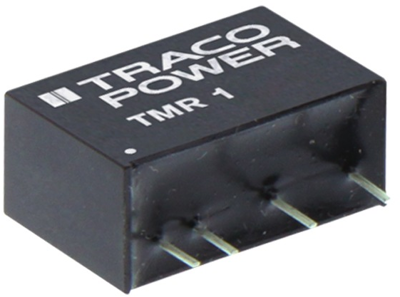

TMR 1-2422 | TRACO POWER
DC/DC converter, 18-36 VDC, 1 W, 2 outputs, ±12 VDC, 80 % efficiency, TMR 1-2422
Unit Price (€ / pc.)
11.1622 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
11.16 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1622 €
10 pcs.
10.0436 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TMR 1.
1.0 W converter, SIL package; Features: 2 : 1 extended-range input, sustained short circuit-proof, regulated outputs, external On/Off, no minimum burden required. Output voltage tolerance: ±1.0 %. Residual ripple: 50 mVpp. Operating temperatures: –40 to +85 °C. I/O test voltage: 1500 VDC. Insulation resistance: min. 1.0 Gohm. MTBF: 2.8 million h at +25 °C.
Input voltage range from 18 to 36 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): TMR 1-2422, 2 x OUT, ±12 VDC, ±42 mA, 80 %
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 42 mA | |
| Bauform | SIP6 | |
| Breite | 7.62 mm | |
| Eingangsspannungsbereich | 18-36 VDC | |
| Höhe | 11 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 17 mm | |
| Leistung | 1 W | |
| Wirkungsgrad | 80 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
