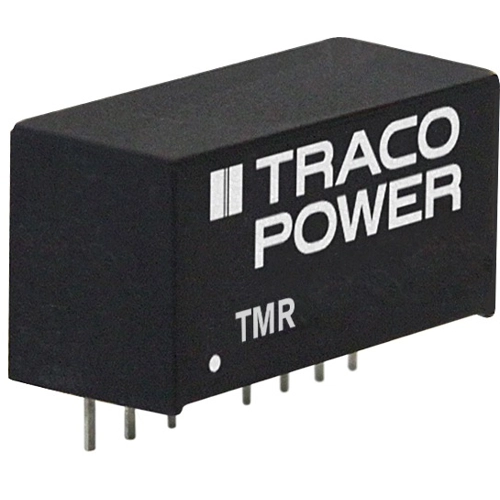

TMR 2423 | TRACO POWER
DC/DC converter, 18-36 VDC, 2 W, 2 outputs, ±15 VDC, 82 % efficiency, TMR 2423
Unit Price (€ / pc.)
16.4696 € *
Available: 18 pcs.
Leadtime: 20 Weeks **
Total Price:
16.47 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4696 €
10 pcs.
14.8036 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TMR.
2.0 W converter in SIL package; Features: 2 : 1 extended-range inputs, sustained short circuit-proof, regulated output, external On/Off. Input voltage fluctuation: ±0.5 %. Load fluctuation: ±0.75 % (±1.0 % on dual output). Residual ripple: 50 mVpp. Temperature coefficient: ±0.1 %/K. Operating temperatures: –40 to +85 °C. I/O test voltage: 1000 VDC. Insulation resistance: >1000 Mohm. MTBF: 2.3 million h at +25 °C.
Technical attributes (type, input voltage range, output voltage/current, typical efficiency): TMR 2423, 18 - 36 VDC, 2 x OUT ±15 VDC/±65 mA, 80 %
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±15 VDC | |
| Output current | 67 mA | |
| Design | SIP8 | |
| Width | 9.2 mm | |
| Input voltage AC | 18-36 VDC | |
| Height | 11.1 mm | |
| Isolation voltage | 1.6 kV | |
| Length | 21.8 mm | |
| Power | 2 W | |
| efficiency | 82 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
| Original Packaging | Bar with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
