TMR 3-1221WIE | TRACO POWER
DC/DC converter, 4.5-18 VDC, 3 W, 2 outputs, ±5 VDC, 70 % efficiency, TMR 3-1221WIE
Unit Price (€ / pc.)
18.2665 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
18.27 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2665 €
10 pcs.
16.4458 €
*incl. VAT plus shipping costs
**Subject to prior sale

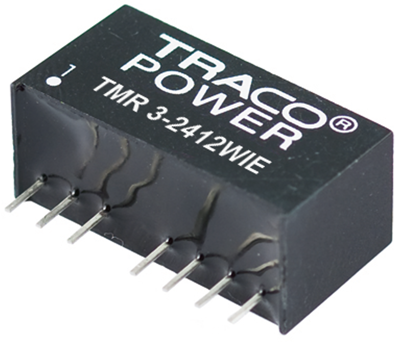

DC/DC converters, Traco TMR 3-1221WIE
The TMR-3WIE series is a family of isolated 3 W dc-dc converter modules with regulated output, featuring wide 4:1 input voltage ranges. The product comes in a compact SIP-8 plastic package with small footprint occupying only 2.0 cm² (0.3 square in.) of board space. An excellent efficiency allows –40°C to +85°C operation temperature. Further features include remote On/Off control and continuous short circuit protection. The compact dimensions and cost optimized design make this converters an ideal solution for applications in communication equipment, instrumentation and industrial electronics.
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±5 VDC | |
| Output current | 300 mA | |
| Design | SIP8 | |
| Width | 9.2 mm | |
| Input voltage AC | 4.5-18 VDC | |
| Height | 11.1 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 21.8 mm | |
| Power | 3 W | |
| efficiency | 70 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
