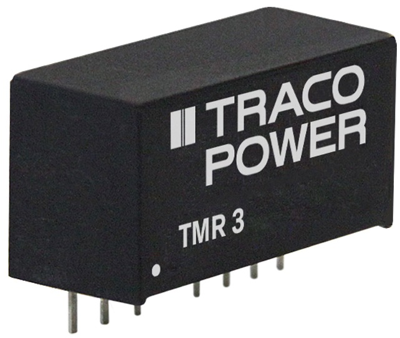

TMR 3-2411 | TRACO POWER
DC/DC converter, 18-36 VDC, 3 W, 1 output, 5 VDC, 82 % efficiency, TMR 3-2411
Unit Price (€ / pc.)
21.4795 € *
Available: 181 pcs.
Leadtime: 20 Weeks **
Total Price:
21.48 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4795 €
10 pcs.
19.3256 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TMR 3.
3.0 W version in miniature SIL package; Features: 2 : 1 extended-range input, regulated output, sustained short circuit-proof, extern on/off. Control error: on input fluctuation max. ±0.2 %, on load fluctuation max. ±0.5 % (single models), max. ±1.0 % (dual models). Residual ripple: 75 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1600 VDC. MTBF: min. 2.4 million h at +25 °C.
Input voltage range from 18 to 36 VDC.
Technical attributes (number of outputs, output voltage, output current, efficiency): TMR 3-2411, 1 x OUT, 5.0 VDC, 600 mA, 81 %
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 5 VDC | |
| Output current | 600 mA | |
| Design | SIP8 | |
| Width | 9.2 mm | |
| Input voltage AC | 18-36 VDC | |
| Height | 11.1 mm | |
| Isolation voltage | 1.6 kV | |
| Length | 21.8 mm | |
| Power | 3 W | |
| efficiency | 82 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
| Original Packaging | Bar with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
