TMR 3-2412WI | TRACO POWER

DC/DC converter, 9-36 VDC, 3 W, 1 output, 12 VDC, 82 % efficiency, TMR 3-2412WI

Order No.: 26K1568
EAN: 4099891297640
MPN:
TMR 3-2412WI
Series: TMR 3WI
TRACO POWER

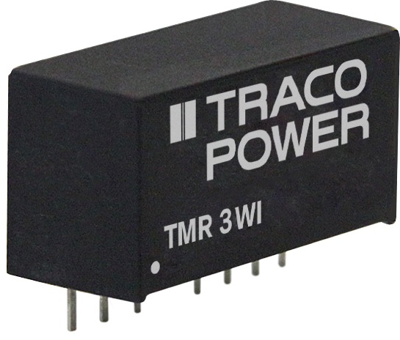

TMR 3-2412WI TRACO POWER DC/DC Converters
Image may differ
Unit Price (€ / pc.)
24.0380 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
24.04 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0380 €
10 pcs.
21.6342 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC converters, type Traco TMR 3..WI.

3.0 W version in miniature SIL package; Features: 4 : 1 extended-range input, regulated output, low ripple, sustained short circuit-proof, extern on/off. Control error: on input fluctuation max. ±0.2 %, on load fluctuation max. ±1.0 %. Residual ripple: max. 30 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VDC. MTBF: min. 1.7 million h at +25 °C.

Input voltage range from 9.0 to 36 VDC.

Technical attributes (number of outputs, output voltage, output current, efficiency): TMR 3-2412WI, 1 x OUT, 12 VDC, 250 mA, 81 %

Technical specifications
Number of outputs 1
Output voltage DC 12 VDC
Output current 250 mA
Design SIP8
Width 9.2 mm
Input voltage AC 9-36 VDC
Height 11.1 mm
Isolation voltage 1.6 kV
Length 21.8 mm
Power 3 W
efficiency 82 %
Logistics
Country of origin TW
Customs tariff number 85044095
Original Packaging Bar with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
