TMR 3-4823WI | TRACO POWER

DC converter, 18-75 VDC, 3 W, 2 outputs, ±15 VDC, 81 % efficiency, TMR 3-4823WI

Order No.: 26K1590
EAN: 4099891297749
MPN:
TMR 3-4823WI
Series: TMR 3WI

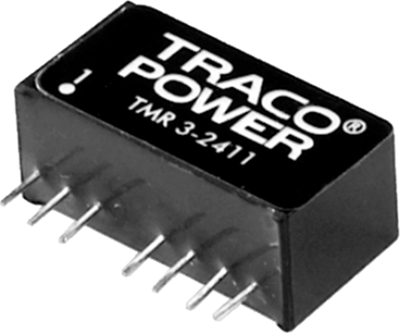

TMR 3-4823WI TRACO POWER DC/DC Converters Image 1
TMR 3-4823WI TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
25.8230 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
25.82 € *
Price list
Quantity
Price per unit*
1 pcs.
25.8230 €
10 pcs.
23.2407 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC converters, type Traco TMR 3..WI.

3.0 W version in miniature SIL package; Features: 4 : 1 extended-range input, regulated output, low ripple, sustained short circuit-proof, extern on/off. Control error: on input fluctuation max. ±0.2 %, on load fluctuation max. ±1.0 %. Residual ripple: max. 30 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VDC. MTBF: min. 1.7 million h at +25 °C.

Input voltage range from 18 to 75 VDC.

Technical attributes (number of outputs, output voltage, output current, efficiency): TMR 3-4823WI, 2 x OUT, ±15 VDC, ±100 mA, 80 %

Technical specifications
Number of outputs 2
Output current 100 mA
Output voltage DC ±15 VDC
Input voltage AC 18-75 VDC
Power 3 W
efficiency 81 %
Design SIP8
Isolation voltage 1.6 kV
Length 21.8 mm
Width 9.2 mm
Height 11.1 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Original Packaging Stange mit 10 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
