TMR 3-7215WIR | TRACO POWER
DC/DC converter, 43-160 VDC, 3 W, 1 output, 24 VDC, 83 % efficiency, TMR 3-7215WIR
Unit Price (€ / pc.)
30.1546 € *
Available: 5 pcs.
Leadtime: 20 Weeks **
Total Price:
30.15 € *
Price list
Quantity
Price per unit*
1 pcs.
30.1546 €
10 pcs.
27.1320 €
*incl. VAT plus shipping costs
**Subject to prior sale

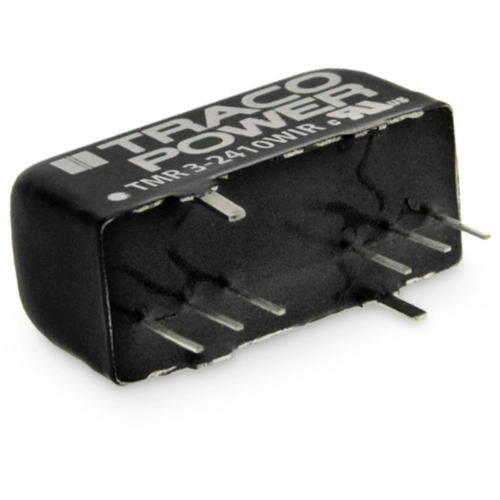

DC/DC converters, Traco TMR 3-7215WIR
The TMR 3WIR series is a set of 3 Watt DC/DC converters in a SIP-8 metal case. They operate up to 78°C environment temperature at full load and up to 90°C with a 50% load derating. With EN 50155 and UL 60950-1 certification, 3’000 VDC I/O-isolation voltage, external On/Off, current limitation and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (4:1) and minimum load is not required.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 125 mA | |
| Bauform | SIP8 | |
| Breite | 9.6 mm | |
| Eingangsspannungsbereich | 43-160 VDC | |
| Höhe | 11.2 mm | |
| Isolationsspannung | 3 kV | |
| Länge | 21.8 mm | |
| Leistung | 3 W | |
| Wirkungsgrad | 83 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
