TMR 6-2412WIR | TRACO POWER
DC/DC converter, 9-36 VDC, 6 W, 1 output, 12 VDC, 87 % efficiency, TMR 6-2412WIR
Unit Price (€ / pc.)
31.6778 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
31.68 € *
Price list
Quantity
Price per unit*
1 pcs.
31.6778 €
10 pcs.
28.5124 €
*incl. VAT plus shipping costs
**Subject to prior sale

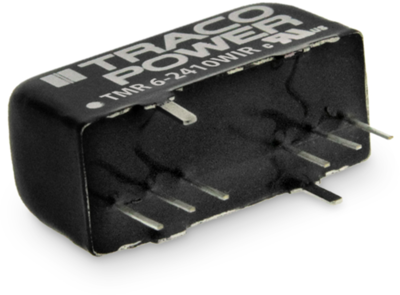

DC/DC converters, Traco TMR 6-2412WIR
The TMR 6WIR series is a set of 6 Watt DC/DC converters in a SIP-8 metal case. They operate up to 60°C environment temperature at full load and up to 80°C with a 50% load derating. With EN 50155 and UL 60950-1 certification, 3’000 VDC I/O-isolation voltage, external On/Off, overload and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (4:1) and minimum load is not required.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Output current | 500 mA | |
| Design | SIP8 | |
| Width | 9.6 mm | |
| Input voltage AC | 9-36 VDC | |
| Height | 11.2 mm | |
| Isolation voltage | 3 kV | |
| Length | 21.8 mm | |
| Power | 6 W | |
| efficiency | 87 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
