TMR 9-2421WI | TRACO POWER
DC converter, 9-36 VDC, 9 W, 2 outputs, ±5 VDC, 86 % efficiency, TMR 9-2421WI
Unit Price (€ / pc.)
46.0887 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
46.09 € *
Price list
Quantity
Price per unit*
1 pcs.
46.0887 €
10 pcs.
41.4596 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TMR 2WI.
2.0 W converter in SIL package; Features: 4 : 1 extended-range input, sustained short circuit-proof, regulated output, external On/Off. Input voltage fluctuation: ±0.5 %. Load fluctuation: ±0.75 % (±1.0 % on dual output). Residual ripple: 50 mVpp. Temperature coefficient: ±0.1 %/K. Operating temperatures: –40 to +85 °C. I/O test voltage: 1500 VDC. Insulation resistance: >1000 Mohm. MTBF: >1.0 million h at +25 °C.
Mit Eingangsspannung 9,0 bis 36 VDC.
Technical attributes (type, input voltage range, output voltage/current, typical efficiency): TMR 9-2421WI, ± 5,0 VDC/±0,8 A, 85%, 50 mVpp

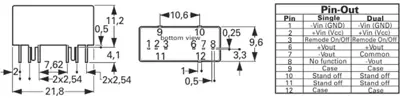

Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±5 VDC | |
| Ausgangsstrom | 800 mA | |
| Bauform | SIP8 | |
| Breite | 9.6 mm | |
| Eingangsspannungsbereich | 9-36 VDC | |
| Höhe | 11.2 mm | |
| Isolationsspannung | 1.6 kV | |
| Länge | 21.8 mm | |
| Leistung | 9 W | |
| Wirkungsgrad | 86 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
