TMU 3-2411 | TRACO POWER
DC converter, 21.6-26.4 VDC, 3 W, 1 output, 5 VDC, 82 % efficiency, TMU 3-2411
Unit Price (€ / pc.)
9.0202 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
9.02 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0202 €
10 pcs.
8.1158 €
*incl. VAT plus shipping costs
**Subject to prior sale

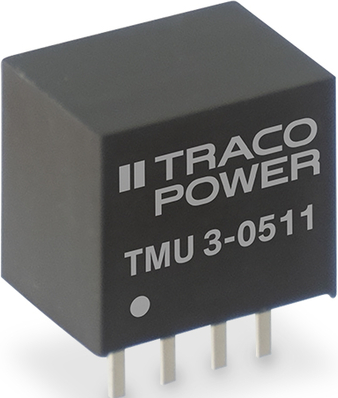

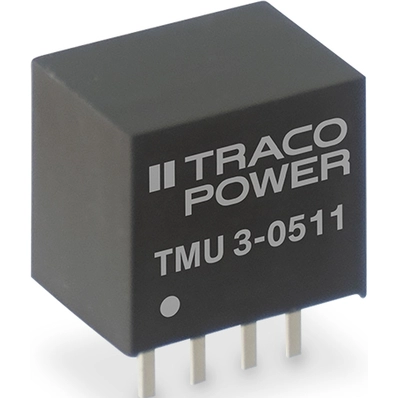

DC/DC Converter, TMU 3-2411, TRACO POWER
The TMU 3 consists of isolated 3 Watt DC/DC converter with unregulated outputs in a standard SIP-4 package. It is designed to offer a compact low-cost alternative to regulated with no concession on quality and lifetime. It features a continuous short circuit protection circuit, I/O-isolation of 1500 VDC and an operating temperature range from -40°C to 75°C without derating. The compact dimensions of ths converter makes it an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.
Features
- Continuous short circuit protection
- Unregulated outputs
- High efficiency up to 86%
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsstrom | 600 mA | |
| Ausgangsspannungsbereich | 5 VDC | |
| Eingangsspannungsbereich | 21,6-26,4 VDC | |
| Leistung | 3 W | |
| Wirkungsgrad | 82 % | |
| Bauform | SIP4 | |
| Isolationsspannung | 1.5 kV | |
| Länge | 11.5 mm | |
| Breite | 10.2 mm | |
| Höhe | 9.6 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
