TRA 1-2412 | TRACO POWER
DC/DC converter, 21.6-26.4 VDC, 1 W, 1 output, 12 VDC, 87.5 % efficiency, TRA 1-2412
Unit Price (€ / pc.)
7.4494 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
7.45 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4494 €
10 pcs.
6.6878 €
*incl. VAT plus shipping costs
**Subject to prior sale

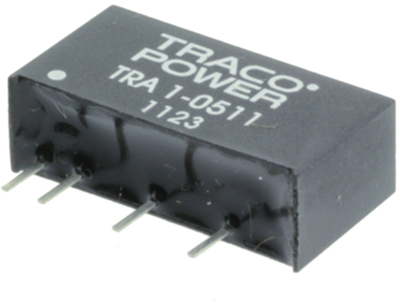

DC/DC converters, Traco TRA 1-2412
The TRA 1 series are miniature, I/O-isolated 1W DC/DC-converters with a semi load regulation. They are the ideal solution to power drivers and circuits where unregulated DC/DC converters do not meet the input voltage range at load change
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 12 VDC | |
| Ausgangsstrom | 84 mA | |
| Bauform | SIP6 | |
| Breite | 6.1 mm | |
| Eingangsspannungsbereich | 21,6-26,4 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1 kV | |
| Länge | 19.5 mm | |
| Leistung | 1 W | |
| Wirkungsgrad | 87.5 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
