TRI 1-2413SM | TRACO POWER
DC converter, 21.6-26.4 VDC, 1 W, 1 output, 15 VDC, 80 % efficiency, TRI 1-2413SM
Unit Price (€ / pc.)
16.4815 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
16.48 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4815 €
10 pcs.
14.8274 €
*incl. VAT plus shipping costs
**Subject to prior sale

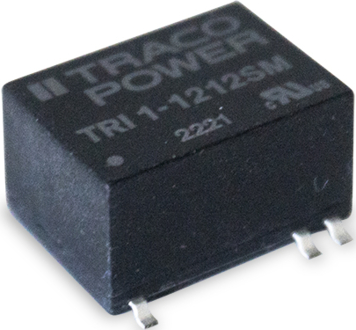

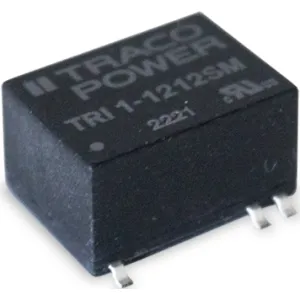

DC/DC Converter, TRI 1-2413SM, TRACO POWER
The new TRI 1SM is a high isolation, unregulated DC/DC converter which comes in a compact SMD-14 package. The core characteristic of the TRI 1SM is a sophisticated reinforced isolation system which is able to withstand high test voltages (8000 VDC for 1s and 3000 VAC for 60s) and working voltages (480 VACrms). Efficiencies up to 84% allow safe operation from -40°C to +85°C without derating. All models have a ±10% input voltage range and precisely regulated, isolated output voltages. With the latest IT safety certifications (IEC/EN/UL 62368-1) the TRI 1SM is the perfect choice for many demanding low power applications in the industrial, transportation and instrumentation sectors.
Features
- Ultra-high isolation peak voltage 8000 VDC
- High efficiency up to 84%
- Protection against overvoltage and short circuit
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsstrom | 68 mA | |
| Ausgangsspannungsbereich | 15 VDC | |
| Eingangsspannungsbereich | 21,6-26,4 VDC | |
| Leistung | 1 W | |
| Wirkungsgrad | 80 % | |
| Bauform | SMD14 | |
| Isolationsspannung | 3 kV | |
| Länge | 18.9 mm | |
| Breite | 13.7 mm | |
| Höhe | 10.5 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
