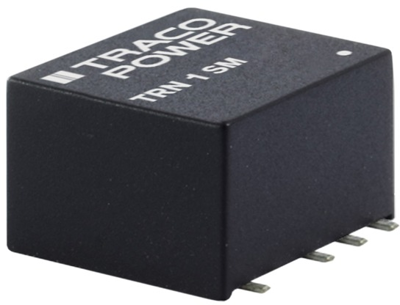

TRN 1-0512SM | TRACO POWER

DC/DC converter, 4.5-13.2 VDC, 1 W, 1 output, 12 VDC, 81 % efficiency, TRN 1-0512SM

Order No.: 32C3461
EAN: 4099891323127
MPN:
TRN 1-0512SM
Series: TRN 1
TRACO POWER
TRN 1-0512SM TRACO POWER DC/DC Converters
Image may differ
Unit Price (€ / pc.)
12.9948 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
12.99 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9948 €
10 pcs.
11.6977 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC/DC converters, Traco TRN 1-0512SM

The TRN 1 Series comprises 1 Watt fully regulated, high performance DC/DC converters. They come in a compact cubical package of only 1.00 cm³. Full load operation is reliable up tp 90°C environment temperature. With 1’600 VDC I/O isolation voltage, and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (2:1) and minimum load is not required. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.

Technical specifications
Number of outputs 1
Output voltage DC 12 VDC
Output current 90 mA
Design SMD
Width 11.3 mm
Input voltage AC 4.5-13.2 VDC
Height 7.6 mm
Isolation voltage 1.6 kV
Length 11.9 mm
Power 1 W
efficiency 81 %
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
