TRN 1-1213SM | TRACO POWER
DC converter, 9-18 VDC, 1 W, 1 output, 15 VDC, 83 % efficiency, TRN 1-1213SM
Unit Price (€ / pc.)
13.2566 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
13.26 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2566 €
10 pcs.
11.9357 €
*incl. VAT plus shipping costs
**Subject to prior sale

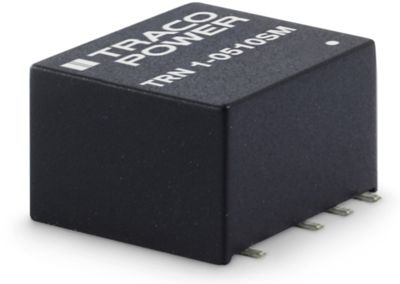

DC/DC converters, Traco TRN 1-1213SM
The TRN 1 Series comprises 1 Watt fully regulated, high performance DC/DC converters. They come in a compact cubical package of only 1.00 cm³. Full load operation is reliable up tp 90°C environment temperature. With 1’600 VDC I/O isolation voltage, and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (2:1) and minimum load is not required. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsstrom | 70 mA | |
| Ausgangsspannungsbereich | 15 VDC | |
| Eingangsspannungsbereich | 9-18 VDC | |
| Leistung | 1 W | |
| Wirkungsgrad | 83 % | |
| Bauform | SMD | |
| Isolationsspannung | 1.6 kV | |
| Länge | 11.9 mm | |
| Breite | 11.3 mm | |
| Höhe | 8 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
