TRN 3-2413SM | TRACO POWER
DC/DC converter, 18-36 VDC, 3 W, 1 output, 15 VDC, 84 % efficiency, TRN 3-2413SM
Unit Price (€ / pc.)
22.1340 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
22.13 € *
Price list
Quantity
Price per unit*
1 pcs.
22.1340 €
10 pcs.
19.9325 €
*incl. VAT plus shipping costs
**Subject to prior sale

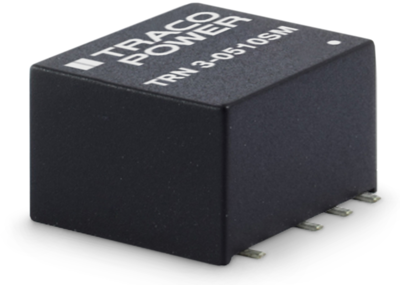

DC/DC converters, Traco TRN 3-2413SM
The TRN 3SM Series comprises 3 Watt fully regulated, high performance DC/DC converters. They come in a compact cubical package of only 1.07 cm³. Full load operation is reliable up tp 85°C environment temperature. With 1’600 VDC I/O-isolation voltage, and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (2:1) and minimum load is not required. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 15 VDC | |
| Output current | 200 mA | |
| Design | SMD | |
| Width | 12 mm | |
| Input voltage AC | 18-36 VDC | |
| Height | 8 mm | |
| Isolation voltage | 1.6 kV | |
| Length | 11 mm | |
| Power | 3 W | |
| efficiency | 84 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
