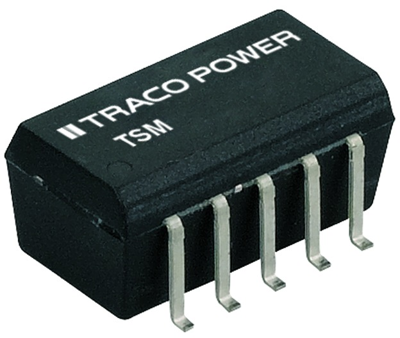

TSM 0505S | TRACO POWER
DC/DC converter, 4.5-5.5 VDC, 1 W, 1 output, 5 VDC, 80 % efficiency, TSM 0505S
Unit Price (€ / pc.)
8.3657 € *
Available: 16 pcs.
Leadtime: 2 Weeks **
Total Price:
8.37 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3657 €
10 pcs.
7.5208 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD DC converters, type Traco TSM.
Compliant with SOIC-14/18. Electrically isolated 1.0 W converter with lead frame technology. High efficiency. I/O electrically isolated up to 1000 VDC; Soldering temperature: up to +245 °C. Output voltage adjustment tolerance: ±3.0 %. Input voltage range: ±10 %. Control error: 10 % on load fluctuation. Residual ripple pp: 120 mVpp. Short-circuit proof: max. 1.0 s. Operating temperatures: –40 to +85 °C. Case: plastic, dielectric, black.
Technical attributes (type, rated power, input voltage/output voltage, number of outputs (OUT), output current (± double), efficiency): TSM0505S, 5.0 VDC, 1 x OUT, 5.0 VDC, 200 mA, 80 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 200 mA | |
| Bauform | SMD | |
| Breite | 8 mm | |
| Eingangsspannungsbereich | 4,5-5,5 VDC | |
| Höhe | 6.8 mm | |
| Isolationsspannung | 1 kV | |
| Länge | 12.7 mm | |
| Leistung | 1 W | |
| Wirkungsgrad | 80 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| MSL | MSL 3 |
| Originalverpackung | Stange mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
