TSM 2415S | TRACO POWER
DC converter, 21.6-26.4 VDC, 1 W, 1 output, 15 VDC, 82 % efficiency, TSM 2415S
Unit Price (€ / pc.)
9.9365 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
9.94 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9365 €
10 pcs.
8.9369 €
*incl. VAT plus shipping costs
**Subject to prior sale

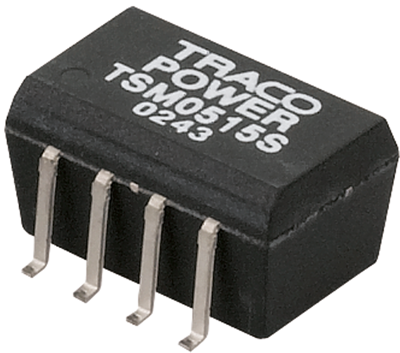

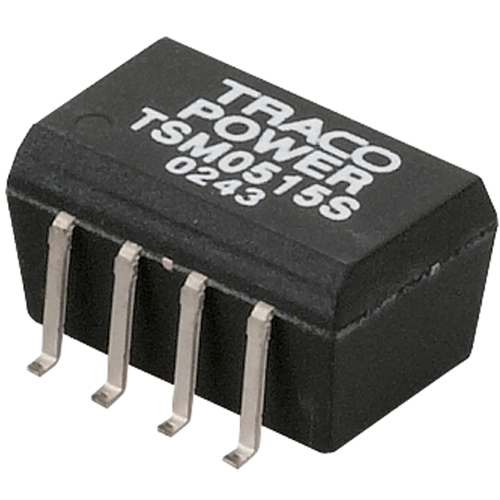

DC/DC converters, Traco TSM 2415S
The TSM series are isolated DC/DC converters with 1W output power implemented in a molded plastic package with a pin accuracy suitable for automated SMD-production. The devices can be soldered without any problems in a high temperature lead free solder process. With their small footprint these converters are the economical solution for point of load power conversion, ground loop elimination, noise reduction and digital interface applications.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 15 VDC | |
| Ausgangsstrom | 65 mA | |
| Bauform | SMD | |
| Breite | 8 mm | |
| Eingangsspannungsbereich | 21,6-26,4 VDC | |
| Höhe | 8.1 mm | |
| Isolationsspannung | 1 kV | |
| Länge | 15.2 mm | |
| Leistung | 1 W | |
| Wirkungsgrad | 82 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
