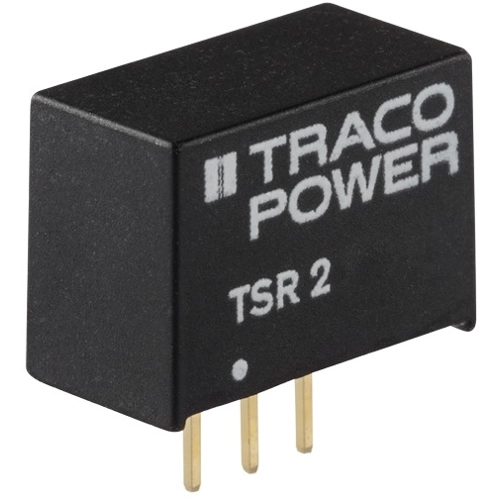

TSR 2-2433 | TRACO POWER
DC/DC converter, 4.75-36 VDC, 6.6 W, 1 output, 3.3 VDC, 91 % efficiency, TSR 2-2433
Unit Price (€ / pc.)
12.0190 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
12.02 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0190 €
10 pcs.
10.8171 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TSR-1.
Step-down switching mode regulator, suitable as replacement for ineffective 78xx linear controllers. SIL package, mates TO-220 connecting surface, pin-compatible with LMxx linear controllers, built-in filter capacitor, sustained short circuit-proof; Output current: max. 1.0 A. Reflected ripple current: 150 mA. Input current at no-load operation: max. 1.0 mA. Control error on input fluctuation/load fluctuation (10 to 100 %): 0.2/0.4 %. Residual ripple: 50 mVpp (1.5 to 6.5 VDC), 75 mVpp (9.0 to 15 VDC). On delay: 2.0 ms. Operating temperatures: –40 to +85 °C.
Technical attributes (type, rated input voltage, output voltage, efficiency a Vin min./Vin max): TSR 1-24150, 18 to 32 VDC, 15 VDC, 96/94 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 3,3 VDC | |
| Ausgangsstrom | 2 A | |
| Bauform | SIP3 | |
| Breite | 7.5 mm | |
| Eingangsspannungsbereich | 4,75-36 VDC | |
| Höhe | 10.1 mm | |
| Länge | 14 mm | |
| Leistung | 6.6 W | |
| Wirkungsgrad | 91 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
