TVN 5-0915WI | TRACO POWER
DC/DC converter, 4.5-12 VDC, 5 W, 1 output, 24 VDC, 88 % efficiency, TVN 5-0915WI
Unit Price (€ / pc.)
69.9839 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
69.98 € *
Price list
Quantity
Price per unit*
1 pcs.
69.9839 €
10 pcs.
62.9748 €
*incl. VAT plus shipping costs
**Subject to prior sale

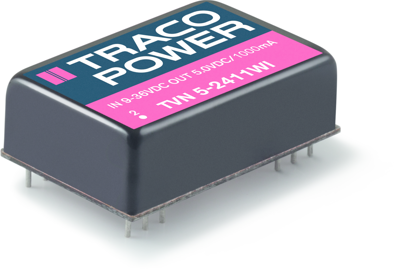

DC/DC converters, Traco TVN 5-0915WI
The TVN 5WI series is a ultra low ripple and noise 5 Watt dc/dc converter featuring wide 4:1 input voltage ranges in a DIP-24 package. Standard features include remote On/Off, over voltage protection, under voltage lockout and short circuit protection. High efficiency across load range and low input current characteristics at no load make these converters the ideal solution for many operations which require low ripple and noise characteristics.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 208 mA | |
| Design | DIP24 | |
| Width | 20 mm | |
| Input voltage AC | 4.5-12 VDC | |
| Height | 14 mm | |
| Isolation voltage | 1.6 kV | |
| Length | 32 mm | |
| Power | 5 W | |
| efficiency | 88 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
