TPC 030-105 | TRACO POWER

Power supply, 5 to 6 VDC, 4 A, 20 W, TPC 030-105

Order No.: 32C2647
EAN: 4099891284176
MPN:
TPC 030-105
Series: TPC
TRACO POWER

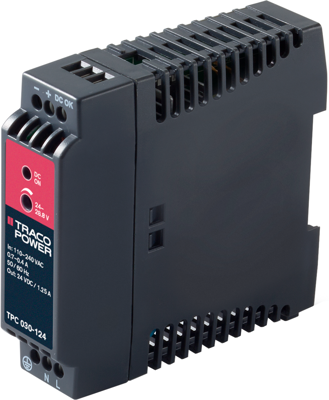

TPC 030-105 TRACO POWER DIN Rail Power Supplies
Image may differ
Unit Price (€ / pc.)
57.1438 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
57.14 € *
Price list
Quantity
Price per unit*
1 pcs.
57.1438 €
10 pcs.
51.4199 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power supply, TPC 030-105, Traco

The TPC 030-105 is a power supply with an excellent price/performance ratio. It has a universal input of 85-264 VAC or 90-375 VDC. With the optional Active Current Sharing redundancy module, this power supply provides a very reliable, true redundant DC supply.

Features

  • High efficiency over the entire load range
  • Reliable snap-on mounting on DIN rails or with wall bracket
  • Output voltage adjustable
  • Signal for good performance
  • Low ripple and noise
  • Overload and short circuit protection

Applications

  • Industrial environments
  • Office environments
  • Living environments
Technical specifications
Number of outputs 1
Output voltage DC 5 to 6 VDC
Output current 4 A
Width 26.5 mm
Input voltage AC 85-264 VAC, 90-375 VDC
Height 96.5 mm
Power 20 W
Degree of protection (IP) IP20
Depth 90 mm
efficiency 79 %
Logistics
Country of origin CN
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
