TPC 055-124 | TRACO POWER
Power supply, 24 to 28.8 VDC, 2.3 A, 55 W, TPC 055-124
Unit Price (€ / pc.)
69.4246 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
69.42 € *
Price list
Quantity
Price per unit*
1 pcs.
69.4246 €
10 pcs.
62.4750 €
*incl. VAT plus shipping costs
**Subject to prior sale

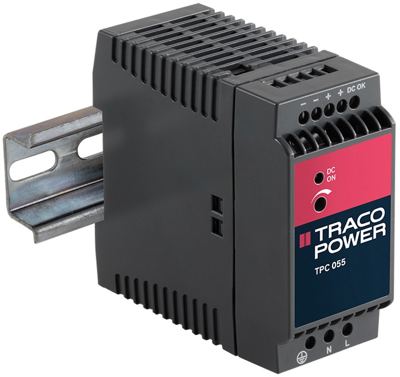

Power supply, TPC 055-124, Traco
The TPC 055-124 is a power supply with an excellent price/performance ratio. It has a universal input of 85-264 VAC or 90-375 VDC. With the optional Active Current Sharing redundancy module, this power supply provides a very reliable, true redundant DC supply.
Features
- High efficiency over the entire load range
- Reliable snap-on mounting on DIN rails or with wall bracket
- Output voltage adjustable
- Signal for good performance
- Low ripple and noise
- Overload and short circuit protection
Applications
- Industrial environments
- Office environments
- Living environments
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 bis 28,8 VDC | |
| Ausgangsstrom | 2.3 A | |
| Breite | 45 mm | |
| Eingangsspannungsbereich | 85-264 VAC, 90-375 VDC | |
| Höhe | 96.5 mm | |
| Leistung | 55 W | |
| Schutzart (IP) | IP20 | |
| Tiefe | 90 mm | |
| Wirkungsgrad | 87 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85043180 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
